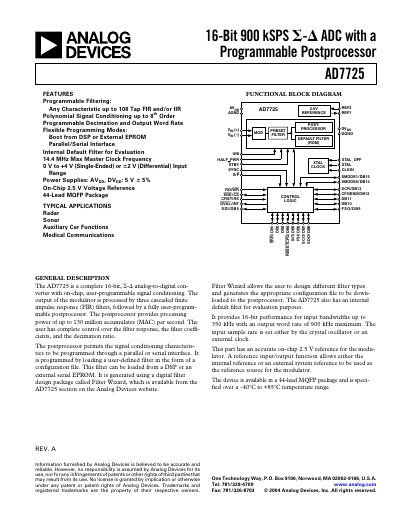

The AD7725 is a complete 16‑bit analog‑to‑digital converter with on‑chip, user‑programmable signal conditioning. It features a three‑stage FIR filter followed by a programmable post‑processor that can perform up to 130 million MAC operations per second. The device operates from a 5 V supply, supports both bipolar (±4 V) and unipolar (0‑4 V) input ranges, and is available in a 44‑lead MQFP package.
Key specifications include a 14.4 MHz maximum master clock, 108‑tap programmable filter, 33 mA typical power consumption, and an operating temperature range of –40 °C to +85 °C. The datasheet provides detailed pin configurations, timing diagrams, absolute maximum ratings, and ordering information for designers.
| Resolution | 16 Bits |
|---|---|
| Maximum Master Clock Frequency | 14.4 MHz |
| Input Range (Bipolar) | ±4 V |
| Power Supply (AVDD) | 5 V ±5 % |
| Maximum Filter Taps | 108 |
| Operating Temperature Range | –40 °C to +85 °C |
The device supports a maximum master clock frequency of 14.4 MHz.
Up to 108 filter taps can be programmed.
The AD7725 operates from –40 °C to +85 °C.
