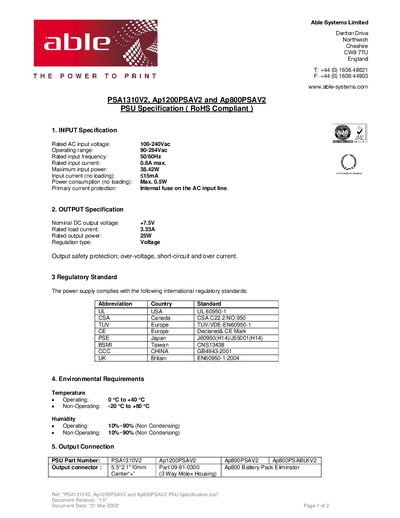

This document is the specifications of PSA1310V2, Ap1200PSAV2 and Ap800PSAV2 power supply adapters produced by Able Systems Limited.
This specification sheet describes the power supply units (PSUs) PSA1310V2, Ap1200PSAV2 and Ap800PSAV2. It lists the rated AC input voltage range, frequency, input current, power consumption, and the nominal DC output voltage, load current and output power, together with safety protections such as over‑voltage, short‑circuit and over‑current protection.
The document also details the regulatory standards the PSUs meet (UL, CSA, CE, etc.), environmental operating temperature and humidity limits, and mechanical information including enclosure dimensions, weight, and plastic case rating.
| Rated AC input voltage | 100‑240Vac / 90‑264Vac |
|---|---|
| Rated input frequency | 50/60Hz |
| Maximum input current | 0.8A max. |
| No‑load power consumption | 0.5W |
| Enclosure dimensions | 93 × 47 × 41.2 mm |
| Enclosure weight | 181 g (max) |
| Plastic case rating | UL94V‑1 |
The PSUs accept an input voltage of 100‑240 Vac (or 90‑264 Vac).
It complies with UL 60950‑1, CSA C22.2‑950, TUV/VDE‑EN60950‑1, CE, PSE J60950/H14, BSMI CNS13438, China GB4943‑2001, and UK EN60950‑1:2004.
