The EF series high power MOSFETs are Infineon's single chip integrated power controller series products, which can achieve high conversion efficiency, high power density and high reliability. They are suitable for various industrial applications.

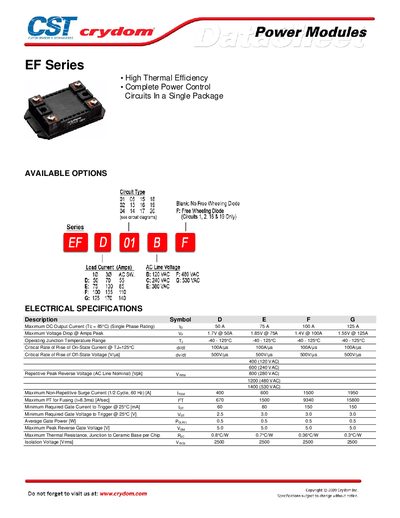

The EF Series Power Modules from Crydom are single‑package power control solutions offering high thermal efficiency and a range of current ratings. The document lists available options, electrical performance, mechanical dimensions, and mounting instructions for each model variant.
Key specifications include maximum DC output currents up to 125 A, voltage drops as low as 1.4 V at 100 A, isolation voltage of 2500 V rms, and a typical weight of 7.0 oz (198 g). Safety warnings, RoHS compliance, and environmental information are also provided.
| Maximum DC Output Current (Single Phase Rating) | 50 A – 125 A |
|---|---|
| Maximum Voltage Drop @ Amps | 1.4 V @ 100 A (model F) |
| Isolation Voltage (Vrms) | 2500 V |
| Mounting Screw Size | M5 |
The modules can deliver up to 125 A, depending on the specific model variant.
All variants are rated for 2500 V rms isolation voltage.
Yes, the modules meet RoHS compliance requirements.
