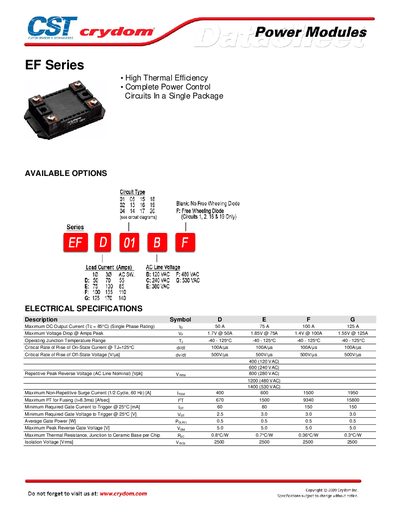

The data table lists the maximum DC output current, maximum voltage drop, operating temperature range, critical rise rate, weight and other information of the EF series products
The EF Series offers high thermal efficiency and complete power control in a single package. Available options include free‑wheeling diode configurations and a range of load current ratings. The datasheet lists detailed electrical specifications such as maximum DC output current, voltage drop, junction temperature range, isolation voltage and thermal resistance for each model variant.
Mechanical specifications cover typical weight (7.0 oz / 198 g), mounting dimensions and screw requirements. Safety warnings and agency approvals (RoHS) are included, along with an annex that details environmental compliance and hazardous substance content.
| Maximum DC Output Current | 50 A‑125 A |
|---|---|
| Maximum Voltage Drop @ Peak Current | 1.7 V @ 50 A, 1.85 V @ 75 A, 1.4 V @ 100 A, 1.55 V @ 125 A |
| Operating Junction Temperature Range | -40 °C to 125 °C |
| Isolation Voltage | 2500 Vrms |
| Average Gate Power | 0.5 W |
The EF Series can deliver a maximum DC output current ranging from 50 A to 125 A depending on the model variant.
The junction can operate from –40 °C up to 125 °C.
The isolation voltage is rated at 2500 Vrms.
