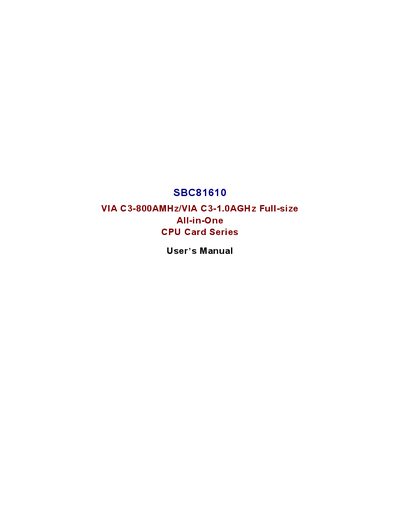

This manual introduces the features of SBC81610 VIA C3-800AMHz/VIA C3-1.0AGHz Full-size All-in-One CPU Card Series and provides detailed instructions on its installation, use and maintenance.
The SBC81610 is an industrial‑grade all‑in‑one CPU card based on the VIA VT8601T chipset and VIA C3 processors. It provides integrated graphics, Ethernet, USB, and a range of I/O interfaces for embedded applications.
The manual includes a general description, detailed specifications, jumper settings, installation steps, hardware descriptions, BIOS configuration, and connector pin assignments for IDE, floppy, parallel, serial, and other interfaces.
| Chipset | VT8601T |
|---|---|
| CPU | VIA C3-800MHz / VIA C3-1.0GHz EBGA |
| Bus Clock | 133 MHz |
| Maximum System Memory | 1.5 GB unbuffered SDRAM |
| IDE Interface | 2 bus‑mastering EIDE up to four devices, Ultra DMA33/66/100 |
| Serial Ports | Two 16550 UARTs (RS‑232 and RS‑232/422/485) |
| Parallel Port | One parallel port with ECP/EPP/SPP support |
| VGA Controller | Integrated AGP‑2x, supports CRT displays up to 1600×1200 |
| Ethernet | Onboard Dual RTL8139C 10/100 M Ethernet with Wake‑On‑LAN |
| USB Interface | 2 USB ports, USB 1.1 compliant |
| Power Management | ACPI |
The card supports up to 1.5 GB of unbuffered SDRAM.
It uses a dual RTL8139C 10/100 M Ethernet controller with Wake‑On‑LAN support.
The board provides two USB 1.1 compliant ports.
It can drive CRT displays up to a resolution of 1600 × 1200.
