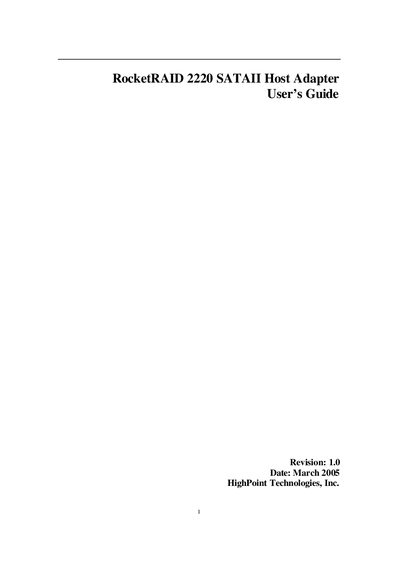

RocketRAID 2220 SATAII Host Adapter User’s Guide is the user manual of HighPoint company RocketRAID 2220 product, which introduces the product's features and usage methods.
The RocketRAID 2220 SATA II Host Adapter User Guide explains the functions and capabilities of the HighPoint RAID controller, including supported RAID levels, hot‑swap, LED indicators, and advanced features such as Online Capacity Expansion and RAID Level Migration.
The guide covers hardware installation, BIOS utility configuration, driver and software installation for Windows and Linux, RAID concepts, array creation, initialization options, and troubleshooting, with contact information for HighPoint technical support.
| PCI Interface | 64‑bit, 66/100/133 MHz PCI‑X |
|---|---|
| LBA Support | 64‑bit LBA for >2 TB drives |
| RAID Levels | RAID 0, 1, 5, 10, JBOD |
| Hot‑Swap | Hot Swap and Hot Spare support |
| LED Indicators | Disk activity and failure status LEDs |
| Online Capacity Expansion | Supported (OCE) |
| Online RAID Level Migration | Supported (ORLM) |
| SMART Monitoring | S.M.A.R.T. drive status monitoring |
It supports RAID 0, RAID 1, RAID 5, RAID 10, and JBOD configurations.
The disk must be initialized, which writes RAID configuration data and erases all existing data.
Contact HighPoint support via email at [email protected] or call 510‑623‑0968 during business hours.
