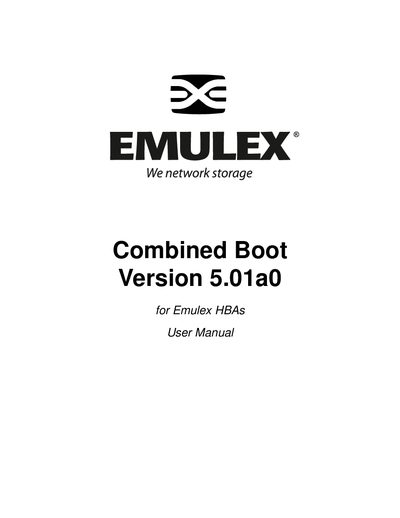

Emulex Combined Boot User Manual

This manual introduces Combined Boot Version 5.01a0 for Emulex HBAs

Brand: Emulex
Category: Adapter
Document type: User Manual
Language: English
Pages: 30
File format: PDF
File size: 868 KB
Published: 09 May, 2012
Updated: 30 September, 2023
MD5 checksum: 624A6A7C5B6E47251E59A78BDC6E2DAB
PDF: Emulex Combined Boot User Manual PDF

About this manual

The Combined Boot User Manual explains the two boot code options provided by Emulex: x86 BootBIOS for standard x86 systems and OpenBoot for SPARC PCI and AIX platforms. It describes how the software detects the host platform, loads the appropriate boot image to the HBA flash ROM, and enables the selected boot code.

The guide includes step‑by‑step procedures for loading and enabling the boot code using Emulex utilities (Iputilnt, elxcfg, Iputil, Ip6dutil), lists the files included in the release, details compatible HBAs, and provides troubleshooting tips for both x86 BootBIOS and OpenBoot environments.

What's inside

Introduction
Compatibility
Files Included in This Release
Loading x86 BootBIOS
Configuring x86 BootBIOS
Loading OpenBoot
Configuring OpenBoot
Viewing OpenBoot Commands
Troubleshooting OpenBoot
Troubleshooting x86 BootBIOS

Specifications

Compatible HBAs	LP9402DC, LP9002DC, LP9002L, LP9000, LP8000, LP8000DC
Boot code types	x86 BootBIOS, OpenBoot

Frequently asked questions

What files are included in the Combined Boot 5.01a0 release?

The kit contains readme.txt (release notes), cc501a0.prg for LP9402DC/LP9002DC/LP9002L/LP9000, and dc501a0.prg for LP8000/LP8000DC.

Which Emulex HBAs are supported by Combined Boot?

Combined Boot supports the LP9402DC, LP9002DC, LP9002L, LP9000, LP8000, and LP8000DC Fibre Channel PCI adapters.
