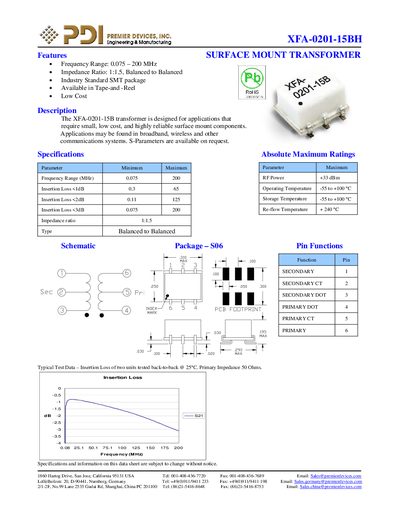

The XFA-0201-15BH is a surface mount transformer with a frequency range of 0.075-200 MHz and an impedance ratio of 1:1.5. It is designed for applications in broadband, wireless communication systems, and other similar fields. It offers small size, low cost, and high reliability.
The XFA-0201-15BH transformer is designed for broadband, wireless and other communications systems where a small, inexpensive, and highly reliable surface‑mount component is required. It is supplied in a standard SMT package and is RoHS compliant.
Key specifications include a wide frequency range, balanced‑to‑balanced 1:1.5 impedance ratio, low insertion loss, and a temperature range suitable for most commercial applications. S‑parameters are available on request, and the part is offered in tape‑and‑reel form for automated assembly.
| Frequency Range | 0.075 – 200 MHz |
|---|---|
| Impedance Ratio | 1:1.5 (balanced to balanced) |
| Insertion Loss | <1 dB |
| Operating Temperature | -55 °C to +100 °C |
| Storage Temperature | -55 °C to +100 °C |
| Re‑flow Temperature | +240 °C |
| RF Power Handling | +33 dBm |
| Package Type | Industry Standard SMT package |
It operates from 0.075 MHz up to 200 MHz.
The transformer has a 1:1.5 balanced‑to‑balanced impedance ratio.
Both operating and storage temperatures are specified from –55 °C to +100 °C.
