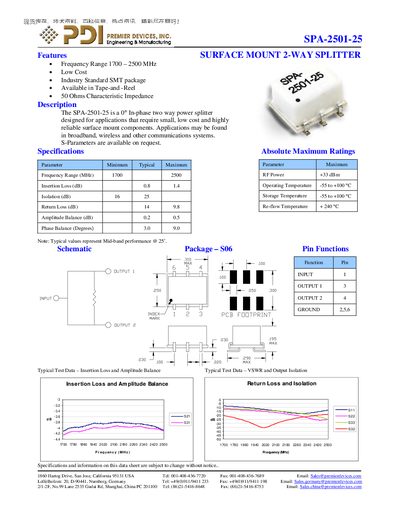

This datasheet provides detailed information about the SPA-2501-25 surface mount 2-way power splitter. The device has a frequency range of 1700-2500 MHz, a 50 Ohms characteristic impedance, and is ideal for applications that require small, low-cost and highly reliable surface mount components with a wide range of applications, such as broadband, wireless and other communication systems.
The SPA-2501-25 is a 0° in‑phase two‑way power splitter designed for broadband, wireless and other communications systems where a small, low‑cost, highly reliable component is required. It is supplied in an industry‑standard SMT package and is available in tape‑and‑reel form.
Key specifications include a frequency range of 1700‑2500 MHz, 50 Ω characteristic impedance, typical insertion loss of 0.8 dB, and operation from –55 °C to +100 °C. Detailed S‑parameters are available on request, and the device meets standard absolute‑maximum ratings for RF power and temperature.
| Frequency Range | 1700 – 2500 MHz |
|---|---|
| Insertion Loss (typical) | 0.8 dB |
| Insertion Loss (maximum) | 14 dB |
| Return Loss | 14 – 98 dB |
| Amplitude Balance | 0.2 – 0.5 dB |
| Phase Balance | 3.0 – 90° |
| RF Power Rating | +33 dBm |
| Operating Temperature | -55 °C to +100 °C |
| Storage Temperature | -55 °C to +100 °C |
| Characteristic Impedance | 50 Ω |
It operates from 1700 MHz to 2500 MHz.
Typical insertion loss is 0.8 dB.
The device has a 50 Ω characteristic impedance.
It can operate from –55 °C up to +100 °C.
