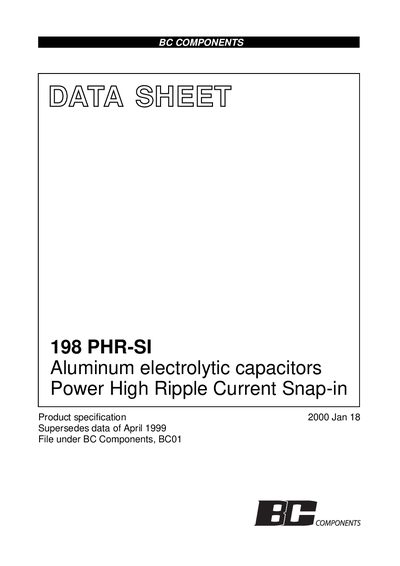

This data sheet is for BC Components 198 PHR-SI aluminum electrolytic capacitors. Product features include polarized aluminum electrolytic capacitors, non-solid electrolyte, large types, miniaturized dimensions, cylindrical aluminum case, insulated with a blue sleeve, pressure relief on the side of the aluminum case, charge and discharge proof, very high ripple current capability, keyed polarity version available.
This handbook details the specifications of BC Components' 198 PHR‑SI aluminum electrolytic capacitors, which are high‑ripple current snap‑in types. It includes features, applications, mechanical dimensions, packaging, and marking information.
The document also presents extensive electrical data such as rated capacitance, voltage, ripple current, ESR, and test procedures required for endurance, useful life, and shelf life, along with ordering information and optional custom‑product options.
| Rated capacitance range | 56 to 680 µF |
|---|---|
| Rated voltage range | 400 V and 450 V |
| Category temperature range | ‑25 °C to +85 °C |
| Endurance test at 85 °C | 7000 hours |
| Surge voltage rating | 2400 V |
The capacitors are rated for 400 V and 450 V.
They are specified for a category temperature range of –25 °C to +85 °C.
The endurance test is specified for 7000 hours at 85 °C.
The surge voltage rating is 2400 V.
