M7260A 10/100/1000Base Ethernet media converter is a product produced by VERSITRON, supporting IEEE802.3U IEEE802.3z 1000Base-Tx/Fx protocol, as well as full duplex and half duplex mode.

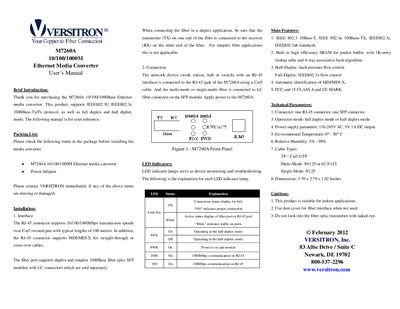

The Versitron M7260A is a 10/100/1000Base‑T to 1000Base‑X media converter that enables copper‑to‑fiber Ethernet connections. This guide provides the information needed to unpack, install, and verify proper operation of the device.
Key sections include the packing list, detailed installation steps for the RJ‑45 and fiber interfaces, LED indicator explanations for troubleshooting, main features, technical parameters, and safety cautions. Follow the instructions to ensure correct fiber pairing, power connection, and network configuration.
| Connector | one RJ‑45 connector, one SFP connector |
|---|---|
| Operation mode | full duplex or half duplex |
| Power supply | 110‑265 V AC, 5 V 1 A DC output |
| Environmental temperature | 0 °C – 50 °C |
| Relative humidity | 5 % – 90 % |
| Cable types | Cat5 UTP, Multi‑Mode 50/125 or 62.5/125, Single‑Mode 9/125 |
| Dimensions | 3.70 × 2.79 × 1.02 inches |
The PWR LED is on when the device is powered on and operating normally.
Connect the fiber to the LC connector on the SFP module, ensuring the transmitter (TX) on one end connects to the receiver (RX) on the other end.
The RJ‑45 port supports typical cable lengths up to 100 meters.
It accepts an AC input of 110 V to 265 V and provides a 5 V 1 A DC output.
