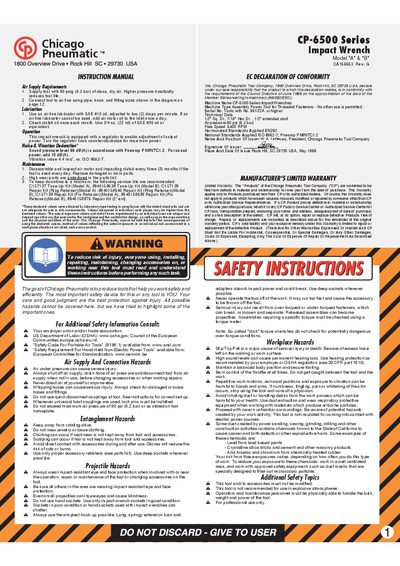

Chicago Pneumatic CP-6500 Series Impact Wrench User Manual

This document details the safe use methods of a certain electric tool, including safety operation, precautions, and workplace hazards

Brand: CHICAGO
Document type: User Manual
Language: English
Pages: 13
File format: PDF
File size: 633 KB
Published: 08 May, 2012
Updated: 30 September, 2023
MD5 checksum: 92C012D3B9DD99BA76175880452BC21F
PDF: Chicago Pneumatic CP-6500 Series Impact Wrench User Manual PDF

About this manual

This manual covers safe operation of the CP-6500 Series pneumatic impact wrench, including required air pressure, lubrication, and protective equipment. It explains how to connect the tool, adjust output power with the regulator, and use the correct impact sockets.

Maintenance information details regular inspection of the air motor and clutch, recommended service kits, and warranty terms. Technical data such as speed, drive sizes, and compliance with standards are listed for reference.

What's inside

Safety Instructions
Operation Guidelines
Maintenance Schedule
Service Kits
Technical Data
Warranty
Specifications
Environmental Precautions

Specifications

Maximum air pressure	90 psi (6.2 bar)
Free speed	6400 RPM
Drive sizes	12" square drive, 12" hex drive, 12" extended anvil
Sound pressure level	96 dB(A)
Vibration value	4.4 m/s²
Harmonized standard	EN292
National standard	ISO 8662-7, Pneurop PN8NTC1.2

Frequently asked questions

What is the maximum air pressure that can be used with the CP-6500 impact wrench?

The tool must not be operated above 90 psi (6.2 bar) as indicated on the nameplate.

How often should the clutch oil be checked?

Clutch oil should be inspected once each month.

Download PDF (633 KB)
