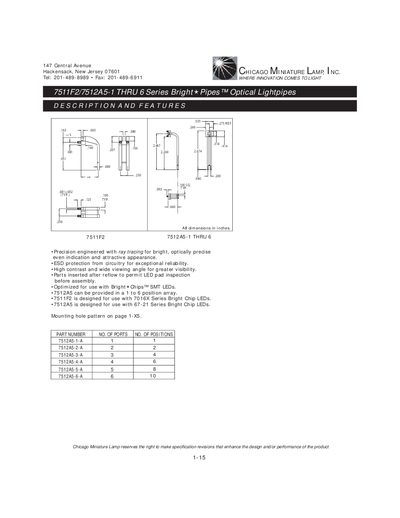

7511F2/7512A5-1 THRU 6 Series Bright Pipes™ optical lightpipes are precision engineered with ray tracing for bright, optically precise even indication and attractive appearance. The lightpipes have ESD protection for exceptional reliability. Their high contrast and wide viewing angle ensure greater visibility. 7512A5 can be provided in a 1 to 6 position array. 7511F2 is designed for use with 7016X Series Bright Chip LEDs, 7512A5 is designed for use with 67-21 Series Bright Chip LEDs.
The 7511F2/7512A5-1 THRU 6 Series Bright Lightpipes are precision‑engineered optical lightpipes offering high contrast, wide viewing angle, and ESD protection. They are optimized for use with Bright Chips™ SMT LEDs and can be supplied in arrays of up to six positions.
Key features include ray‑traced bright optics, ESD protection from circuitry, and a mounting hole pattern for easy integration. Part numbers and port/position configurations are listed, and all dimensions are provided in inches.
| Dimensions unit | inches |
|---|---|
| ESD protection | from circuitry |
| Ports per part | 1 |
| Positions per part | 1 |
It is designed for use with 7016X Series Bright Chip LEDs.
It can be provided in a 1 to 6 position array.
