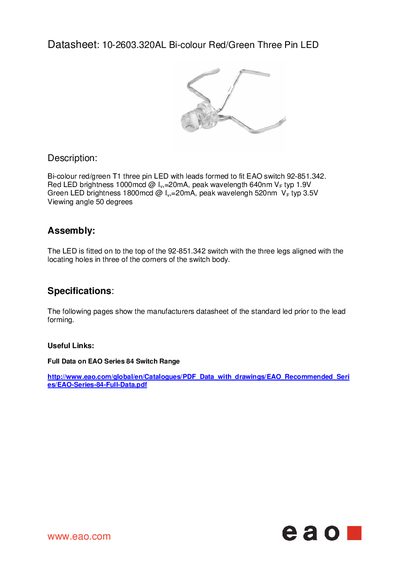

This document is the English datasheet of 10-2603.320AL Bi-colour Red/Green Three Pin LED, including product features such as color, brightness, voltage, etc.
The 10-2603.320AL is a bi‑colour red/green T1 three‑pin LED designed to fit the EAO 92‑851.342 switch. It features three leads with one common lead and provides uniform light output with low power consumption. The LED is mounted on the top of the switch, aligning the legs with locating holes in three corners of the switch body.
Key specifications include red brightness of 1000 mcd and green brightness of 1800 mcd at 20 mA, peak wavelengths of 640 nm (red) and 520 nm (green), typical forward voltages of 1.9 V (red) and 3.5 V (green), and a 50° viewing angle. The device can dissipate up to 75 mW, operate from –40 °C to +85 °C, and requires careful handling with anti‑static precautions.
| Red brightness | 1000 mcd @ 20 mA |
|---|---|
| Green brightness | 1800 mcd @ 20 mA |
| Red peak wavelength | 640 nm |
| Green peak wavelength | 520 nm |
| Viewing angle | 50° |
| Red forward voltage (typ) | 1.9 V |
| Green forward voltage (typ) | 3.5 V |
| Power dissipation | 75 mW (Red) / 135 mW (Green) |
| DC forward current | 30 mA |
| Reverse voltage | 5 V |
| Operating temperature range | -40 °C to +85 °C |
Use a wrist band or anti‑electrostatic glove and ensure all equipment is grounded when handling the LEDs.
The LED has a viewing angle of 50 degrees.
