Center-Tap Configuration, Isolated and Hermetically Sealed Ultra-Fast Low Voltage Rectifiers

Brand: omnlrel
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 19 KB
Published: 08 May, 2012
Updated: 30 September, 2023
MD5 checksum: 9B25A55161B7611BBF82DEED092A5C3E
PDF: omnlrel 1N6762 1N6762R JANTX1N6762 JANTX1N6762R JANTXV1N6762 JANTXV1N6762R 1N6763 1N6763R JANTX1N6763 JANTX1N6763R JANTXV1N6763 JANTXV1N6763R 1N6764 1N6764R JANTX1N6764 JANTX1N6764R JANT PDF

About this manual

The OmniRel JANTX and JANTXV series are dual rectifier diodes offered in a TO‑254AA package and qualified to MIL‑PRF‑19500/642. They are available in both common‑cathode and common‑anode (R‑suffix) configurations and are suited for military‑grade low‑voltage applications such as switching power supplies, motor controls, and inverters.

Key features include a center‑tap configuration, hermetically sealed construction, ultra‑fast recovery, low forward voltage, and compliance with MIL‑PRF‑19500/642. The datasheet provides maximum reverse voltage, forward voltage, surge current, and thermal characteristics for each part number.

What's inside

Features
Description
Primary Electrical Characteristics
Electrical Characteristics

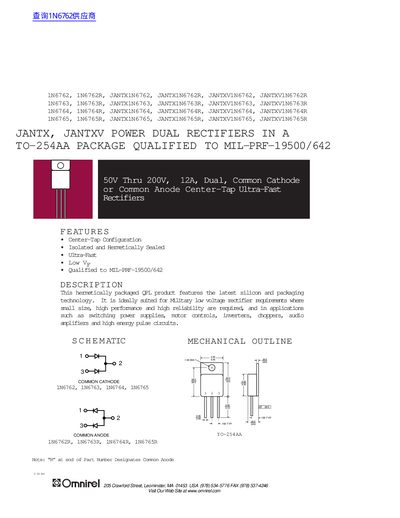

Schematic Mechanical Outline

Specifications

Maximum Reverse Voltage (V_RRM)	50 V (1N6762/1N6762R)
Maximum Reverse Voltage (V_RRM)	100 V (1N6763/1N6763R)
Maximum Reverse Voltage (V_RRM)	150 V (1N6764/1N6764R)
Maximum Reverse Voltage (V_RRM)	200 V (1N6765/1N6765R)
Forward Voltage (V_F)	0.95 V – 1.05 V

Frequently asked questions

What is the maximum reverse voltage for part 1N6764?

The maximum reverse voltage for 1N6764 is 150 V.

What are the forward voltage characteristics of these diodes?

The forward voltage is typically between 0.95 V and 1.05 V.
