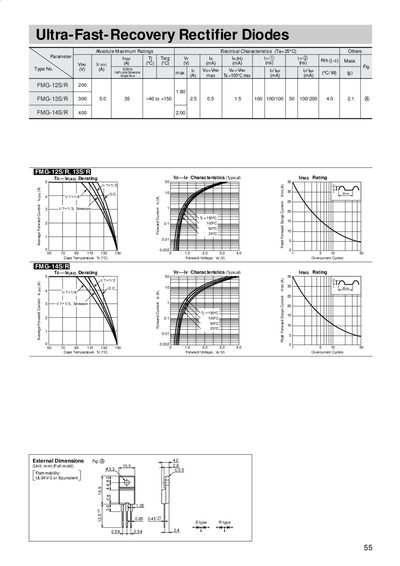

FMG-12S/R, FMG-13S/R, FMG-14S/R Ultra-Fast-Recovery Rectifier Diodes Datasheet

This datasheet lists the absolute maximum ratings, electrical characteristics, external dimensions etc. of FMG-12S/R, 13S/R type ultra-fast-recovery rectifier diodes.

Brand: Ultra-Fast-Recovery
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 1
File format: PDF
File size: 19 KB
Published: 08 May, 2012
Updated: 30 September, 2023
MD5 checksum: 985BDDD369FC3F0E4E312BE36689B2A8
PDF: FMG-12S/R, FMG-13S/R, FMG-14S/R Ultra-Fast-Recovery Rectifier Diodes Datasheet PDF

About this manual

This datasheet provides the electrical specifications for the Ultra-Fast-Recovery rectifier diode series FMG-12S/R, FMG-13S/R and FMG-14S/R. It lists absolute maximum ratings, forward and reverse voltage characteristics, and derating curves over temperature.

The document also includes mechanical data such as external dimensions and the flammability rating (UL94 V‑0). These details help designers select the appropriate diode for high‑speed switching applications.

What's inside

Absolute Maximum Ratings
Electrical Characteristics
Derating Characteristics
External Dimensions
Flammability

Specifications

VRRM (Maximum Repetitive Peak Reverse Voltage)	200 V
IFSM (Maximum Surge Current)	300 A
Tj (Maximum Junction Temperature)	150°C
Flammability Rating	UL94 V‑0

Frequently asked questions

What is the maximum reverse voltage for the FMG-12S/R diode?

The FMG-12S/R diode is rated for a maximum repetitive peak reverse voltage of 200 V.

What forward current rating does the FMG-13S/R diode have?

The FMG-13S/R diode can handle a forward current of 300 A.

What is the flammability rating of these diodes?

The diodes meet the UL94 V‑0 flammability standard.
