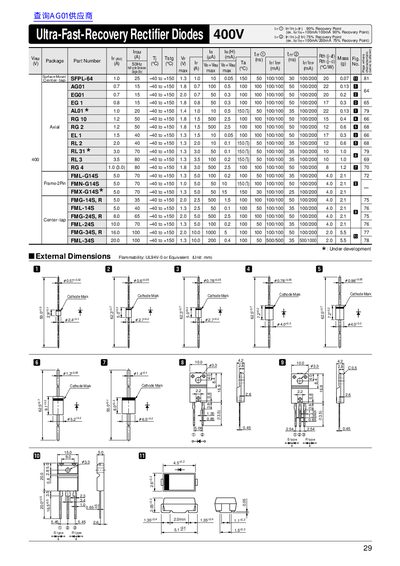

BiWAGO AVS Ultra-Fast-Recovery Rectifier Diodes 400V Datasheet

This datasheet is about 400V S type and R type ultra-fast recovery diodes

Brand: Ultra-Fast-Recovery
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 52 KB
Published: 07 May, 2012
Updated: 30 September, 2023
MD5 checksum: 3D316FCD1FD276559FC97A0EEE181DEA
PDF: BiWAGO AVS Ultra-Fast-Recovery Rectifier Diodes 400V Datasheet PDF

About this manual

This datasheet presents the specifications of the BiWAGO AVS series ultra‑fast‑recovery rectifier diodes. It includes forward current ratings, recovery times, reverse voltage limits and package dimensions for a range of part numbers.

The document also lists cathode marking patterns and provides typical application limits such as maximum repetitive peak reverse voltage and allowable surge currents.

What's inside

Electrical Characteristics
Recovery Time
Maximum Ratings
Package Information
Cathode Marking

Specifications

Maximum Repetitive Peak Reverse Voltage (VRRM)	400 V
Package Type	2‑Pin
Forward Current (IF) for SFPL‑64	1.0 A

Frequently asked questions

What is the maximum reverse voltage for the AVS diodes?

The AVS diodes are rated for a maximum repetitive peak reverse voltage of 400 V.

What package style do the AVS diodes use?

They are supplied in a 2‑Pin package.

What is the forward current rating of the SFPL‑64 part?

The SFPL‑64 diode can handle a forward current of 1.0 A.
