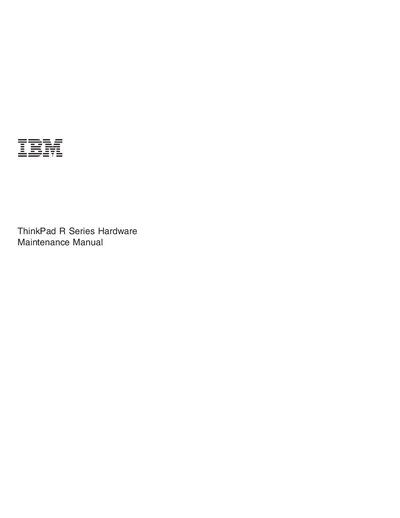

This is a hardware maintenance manual for ThinkPad R Series. It describes the features and characteristics of the products in this series.
The IBM ThinkPad R Series Service Manual contains service and reference information for the R Series laptops. It includes safety notices, hardware descriptions, and step‑by‑step procedures for replacing components such as hard drives, LCD assemblies, and FRUs.
The manual also offers diagnostic guidance, including error‑code interpretation, POST message formats, and a compatibility matrix for 3.5‑inch diskette drives. Parts lists and FRU replacement strategies help technicians perform efficient repairs while minimizing unnecessary component swaps.
| 3.5‑inch 1.44 MB diskette drive identification | "1.44" on the eject button |
|---|---|
| 3.5‑inch 2.88 MB diskette drive identification | "2.88" on the eject button |
| Diskette capacity 4.0 MB compatibility | Not compatible with 1.44 MB drive |
Always try to run a low‑level format before replacing a hard disk drive.
POST error messages appear on the screen as three, four, five, or eight digits.
Install all diskette fixes first, then reinstall the original FRU before replacing another if the first replacement does not solve the problem.
