The document describes the features and characteristics of a 320 x 240 dots graphic module with CCFL backlight and touch screen. It operates on supply voltages of 5V and 27V, and is suitable for STN/black and white and FSTN displays. The module has dimensions of 168.0W x 111.0H x 9.0T mm, a viewing area size of 120.0W x 90.0H mm, and a dot pitch of 0.36W x 0.36H mm.

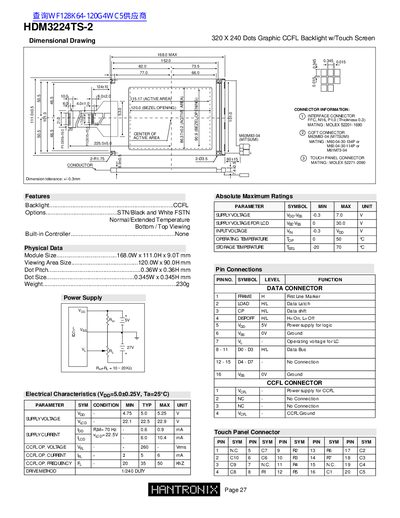

The HDM3224TS-2 is a 320 × 240 dot graphic display with a CCFL backlight and integrated touch screen. The datasheet provides dimensional drawings, connector details, and electrical ratings.
Key information includes module size, viewing area dimensions, connector types (Molex, Mitsumi), and absolute maximum ratings such as operating temperature and supply voltages.
| Module Size | 168.0 mm W × 111.0 mm H × 9.0 mm T |
|---|---|
| Viewing Area Size | 120.0 mm W × 90.0 mm H |
| Dot Pitch | 0.36 mm W × 0.36 mm H |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -20 °C to 70 °C |
| Touch Panel Connector | Molex 52271-2090 |
| CCFL Connector Supply Voltage | 221 V (typical) |
The touch panel uses a Molex 52271-2090 connector.
The device operates from 0 °C up to 50 °C.
The viewing area measures 120.0 mm wide by 90.0 mm high.
