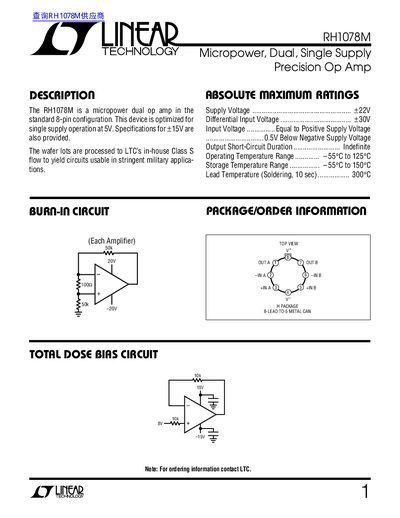

The RH1078M is a micropower dual op amp in the standard 8-pin configuration. This device is optimized for single supply operation at 5V. Specifications for ±15V are also provided. The wafer lots are processed to LTC’s in-house Class S flow to yield circuits usable in stringent military applications.
The RH1078M is a micropower dual operational amplifier offered in an 8‑lead metal‑can package. It is optimized for single‑supply operation at 5 V but can tolerate up to +22 V absolute maximum ratings. The device is intended for stringent military applications and is processed in‑house with Class S flow.
The datasheet provides extensive electrical characteristics, including input offset voltage, bias currents, slew rate, gain‑bandwidth product, and output swing for both normal and post‑irradiation conditions. It also lists MIL‑STD‑883 test requirements, typical application graphs, and ordering information.
| Supply Voltage (single‑supply) | 5 V (optimized) |
|---|---|
| Input Offset Voltage (min) | 120 µV |
| Input Bias Current (typ) | 15 nA |
| Supply Current per Amplifier | 15 pA |
| Output Voltage Swing (Low, No Load) | 6 mV |
The RH1078M is optimized for single‑supply operation at 5 V, though it can handle up to +22 V absolute maximum.
The minimum input offset voltage is 120 µV.
Yes, electrical characteristics are provided for post‑irradiation doses up to 100 krad(Si).
