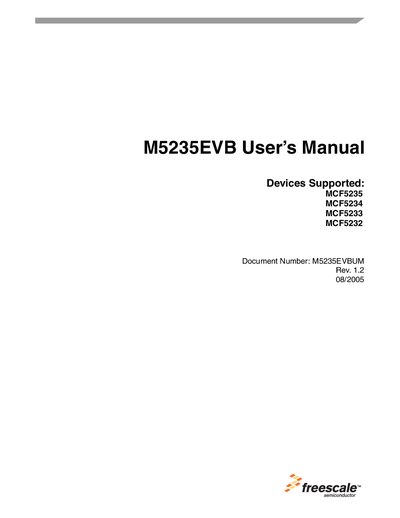

Freescal M5235EVBMCF5235 MCF5234 MCF5233 MCF5232 User Manual

About this manual

The M5235EVB evaluation board supports the MCF5235, MCF5234, MCF5233, and MCF5232 microprocessors. It is intended as a development platform for hardware or software in educational or professional laboratory environments.

The manual covers unpacking, power provisioning, connector descriptions, terminal configuration, BDM/JTAG usage, the dBUG monitor/debug firmware, command‑line operations, and includes schematics and a bill‑of‑materials. Safety warnings address RF interference and anti‑static precautions.

What's inside

• Unpacking
• Providing Power to the Board
• Power Switch (SW4)
• Power Status LEDs and Fuse
• Selecting Terminal Baud Rate
• Connecting the Terminal
• System Power‑up and Initial Operation
• Using the BDM Port
• Using the Monitor/Debug Firmware
• Appendix B Schematics

Specifications

Frequently asked questions

What is the intended use of the M5235EVB board?

It is designed as a development platform for hardware or software in an educational or professional laboratory.

What EMC classification does the board meet?

The board meets the requirements of EN5022 and EN 50082‑1:1998 as a Class A product.

What precautions should be taken when using the board?

Anti‑static precautions must be followed, and the board may cause radio‑frequency interference that the user must mitigate.
