Featured freescal manuals

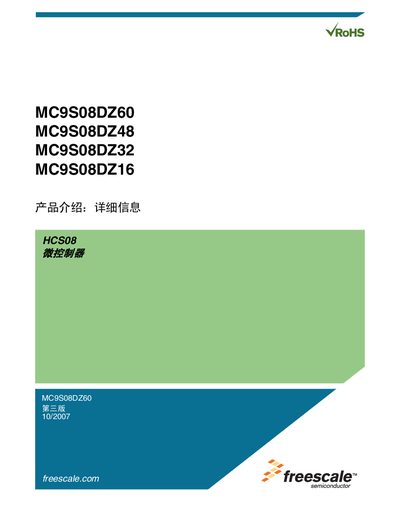

freescal MC9S08DZ60 MC9S08DZ48 MC9S08DZ32 MC9S08DZ16 series products Manual
The MC9S08DZ60 series is an 8‑bit HCS08 microcontroller family offering up to 60 KB of flash, 2 KB of EEPROM and 4 KB of RAM. It features a 40 MHz CPU core, multiple low‑power modes, and a flexible clock system supporting both internal and external oscillators.
The device includes a rich set of peripherals such as 24‑channel 12‑bit ADC, dual analog comparators, CAN, LIN, SPI, SCI, I²C, TPM, RTC and extensive I/O options. Detailed electrical characteristics, pin assignments, and ordering information are provided throughout the document.
Covers: Device Overview · Pin and Connections · Operating Modes · Memory Architecture · Reset, Interrupt and System Control · Peripheral Modules
Latest freescal manuals
Freescal M5235EVBMCF5235 MCF5234 MCF5233 MCF5232 User Manual
This manual describes how to use the M5235EVB board.
freescal MC9S08DZ60 MC9S08DZ48 MC9S08DZ32 MC9S08DZ16 series products Manual
Datasheet 381 pages · 5.1 MB · ENTechnical datasheet for the Freescale MC9S08DZ60 8‑bit HCS08 microcontroller series, covering architecture, memory, peripherals and electrical specs.
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in freescal manuals
What is the maximum flash memory size for the MC9S08DZ60?
The MC9S08DZ60 provides up to 60 KB of flash memory.
From: freescal MC9S08DZ60 MC9S08DZ48 MC9S08DZ32 MC9S08DZ16 series products Manual
How many ADC channels does the device have and what is their resolution?
It includes a 24‑channel ADC with 12‑bit resolution.
From: freescal MC9S08DZ60 MC9S08DZ48 MC9S08DZ32 MC9S08DZ16 series products Manual
