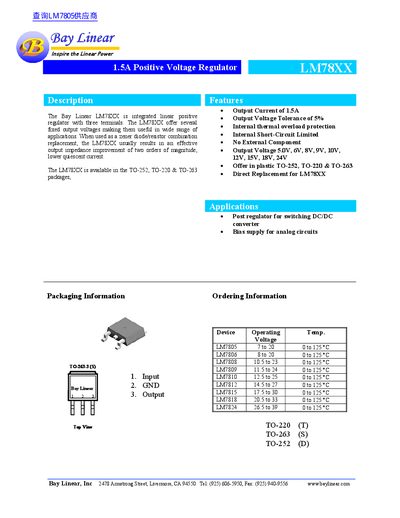

The LM78XX is a 1.5A positive voltage regulator produced by Bay Linear. It has multiple fixed output voltages and is suitable for a wide range of applications.
The LM78XX series from Bay Linear provides 1.5 A positive voltage regulation with fixed output options ranging from 5 V to 24 V. The devices include internal thermal overload protection and short‑circuit limiting, making them suitable for bias supplies, post‑regulation of switching converters, and analog circuit power.
The series is offered in TO‑252, TO‑220 and TO‑263 plastic packages. Detailed absolute maximum ratings, electrical characteristics, and safety notes are provided, along with packaging and ordering information.
| Output Current | 1.5 A |
|---|---|
| Output Voltage Tolerance | ±5 % |
| Internal Thermal Overload Protection | Yes |
| Internal Short‑Circuit Limiting | Yes |
| Storage Temperature Range | -65 °C to 150 °C |
The LM78XX series provides an output current of up to 1.5 A.
The devices are offered in plastic TO‑252, TO‑220 and TO‑263 packages.
