The document describes a wirewound rotary potentiometer called ABW 1, which features a rated resistance range, resistance tolerance, resistance taper, rated dissipation, limiting element voltage, isolation voltage, and temperature range. The product is suitable for applications with a wide temperature range.

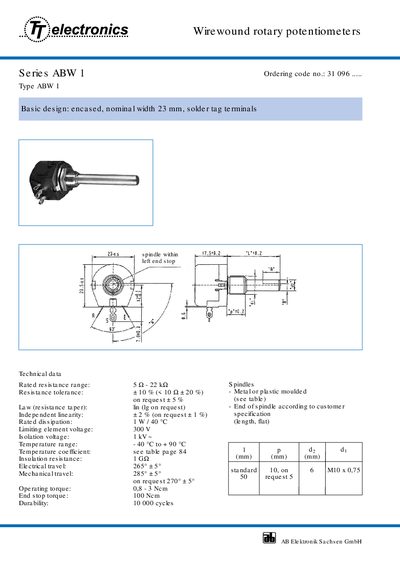

The AB ABW 1 series are wire wound rotary potentiometers with an encased design and a nominal width of 23 mm. They feature solder‑tag terminals and are available with metal or plastic moulded spindles.
The datasheet provides detailed technical data such as rated resistance range, tolerance, dissipation, voltage limits, temperature range, travel angles, torque values, durability cycles and ordering information.
| Rated resistance range | 5 Ω‑22 kΩ |
|---|---|
| Temperature range | -40 °C to +90 °C |
| Operating torque | 0.8 Nm ‑ 3 Nm |
| End stop torque | 100 Nm |
| Durability | 10 000 cycles |
| Spindle material | Metal or plastic moulded |
The rated resistance range is 5 Ω‑22 kΩ.
It operates from –40 °C to +90 °C.
The potentiometer is rated for 10 000 cycles.
