The document describes the features and characteristics of a certain product.

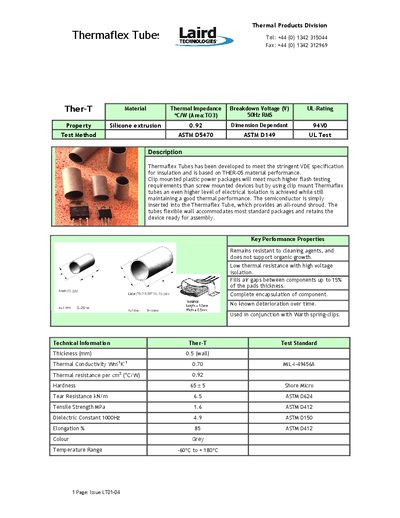

The catalogue presents Laird Technologies' range of thermal management solutions. It includes detailed data for Thermaflex silicone extrusion tubes, adjustable thermal‑pad dispensers, various T‑GON conductive insulators, and high‑performance thermal greases and compounds. Each product entry lists key thermal and electrical properties, material dimensions, and recommended applications such as power supplies, transformers and semiconductor devices.
Contact information for Laird’s worldwide sales and support offices is provided, along with ordering codes and part numbers. The document serves as a quick reference for engineers selecting thermal interface materials and high‑voltage insulators.
| Thermaflex Tube thickness | 0.5 mm (wall) |
|---|---|
| Thermaflex Tube thermal resistance | 0.92 °C/W |
| Thermaflex Tube thermal conductivity | 0.70 W/m·K |
| Thermaflex Tube temperature range | -55 °C to +180 °C |
| T‑GON 200 series breakdown voltage | 6 kV |
| T‑GON 200 series thermal resistance | 0.18 °C·in/W |
| T‑GREASE 401 thermal conductivity | 0.6 W/m·K |
| T‑GREASE 401 volume resistivity | 1.0 × 10⁰ Ω·cm |
The Thermaflex Tube operates from –55 °C up to +180 °C.
The T‑GON 200 series provides a breakdown voltage of 6 kV.
Yes, both T‑GREASE 401 and the higher‑conductivity variant are suitable for automatic dispensing.
