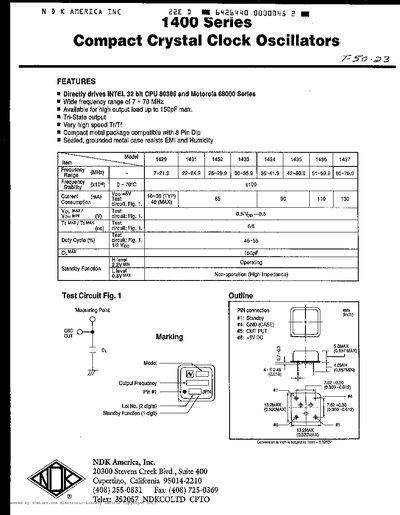

The 1400 Series crystal clock oscillators from NDK are designed for high‑speed microprocessor applications such as Intel 32‑bit CPUs and Motorola 68000 series. They feature a compact metal package compatible with an 8‑pin DIP, sealed and grounded to resist EMI and humidity.
These devices operate from a 5 V supply, offer a tri‑state output, and can drive loads up to 150 pF. They cover a wide frequency range from 7 MHz to 70 MHz with typical current consumption of 30‑40 mA and a stability of 10% over 0‑70 °C.
| Frequency range | 7 – 70 MHz |
|---|---|
| Typical current consumption | 30‑40 mA |
| Maximum load capacitance | 150 pF |
| Output type | Tri‑state |
| Stability | 10% over 0‑70 °C |
| Package | Compact metal, 8‑pin DIP compatible |
| EMI protection | Sealed, grounded metal case |
They operate from 7 MHz up to 70 MHz.
The device can drive up to 150 pF of load capacitance.
It provides a tri‑state output.
