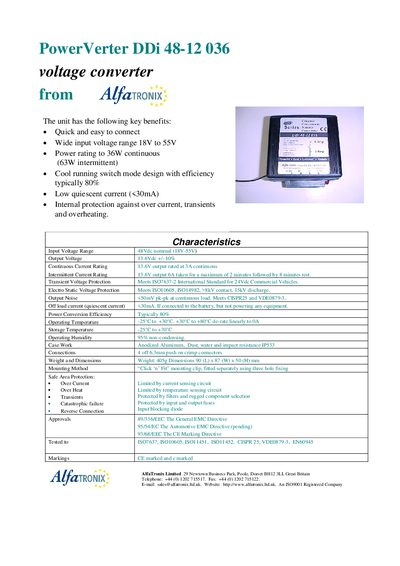

The PowerVerter DDi 48-12 036 is a voltage converter with an input voltage range of 48Vdc nominal (18V-55V) and an output voltage of 13.6Vdc +/- 10%. Continuous current rating is rated at 3A continuous, intermittent current rating is 13.6V output rated at 3A continuous, 13.6V output 6A taken for a maximum of 2 minutes followed by 8 minutes rest.
The PowerVerter DDi 48-12 036 is a compact DC‑DC voltage converter designed for automotive and commercial‑vehicle applications. It offers a wide input range of 18 V to 55 V and delivers a regulated 13.6 V output with high efficiency and low quiescent current.
Key specifications include a continuous output of 3 A (6 A intermittent for 2 min), typical efficiency of 80 %, and robust protection against over‑current, over‑heat, transients, and reverse connection. The unit is housed in an anodized aluminum case with IP533 rating, weighs 405 g, and measures 90 × 87 × 50 mm.
| Input Voltage Range | 48 Vdc nominal (18 V‑55 V) |
|---|---|
| Output Voltage | 13.6 Vdc ±10 % |
| Continuous Output Current | 3 A |
| Intermittent Output Current | 6 A for 2 min (then 8 min rest) |
| Output Noise | <50 mV pk‑pk at continuous load |
| Quiescent Current | <30 mA |
| Efficiency | Typically 80 % |
| Operating Temperature | -25 °C to +30 °C (derated to +80 °C) |
| Weight | 405 g |
| Dimensions | 90 mm L × 87 mm W × 50 mm H |
It accepts a nominal 48 Vdc input with a usable range from 18 V to 55 V.
The unit delivers a continuous output of 3 A at 13.6 V.
Its power conversion efficiency is typically about 80 %.
It includes internal protection against over‑current, transients, overheating, reverse connection, and features input and output fuses.
