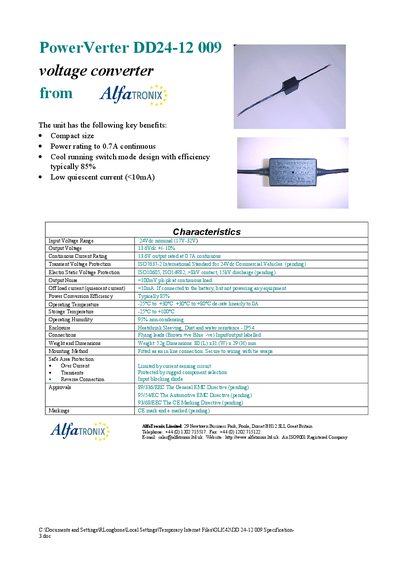

This document describes the features and characteristics of the PowerVerter DD24-12 009 voltage converter, including input voltage range, output voltage, continuous current rating, transient voltage protection, electrostatic voltage protection, output noise, off load current, power conversion efficiency, operating temperature, storage temperature, operating humidity, enclosure, connections, weight and dimensions, mounting method, safe area protection, approvals, etc.
The PowerVerter DD24-12 009 is a compact 13.6 V voltage converter with a continuous output current of 0.7 A and typical efficiency of 85 %. It features low quiescent current (<10 mA), electro‑static voltage protection, and an IP54‑rated enclosure for dust and water resistance.
The device operates from a 24 V nominal input (17 V‑32 V range) and is designed for in‑line mounting with flying leads. It meets several international EMC directives and includes safety protections such as over‑current, reverse‑connection, and transient suppression.
| Input Voltage Range | 17 V – 32 V (24 V nominal) |
|---|---|
| Output Voltage | 13.6 V ±10 % |
| Continuous Output Current | 0.7 A |
| Efficiency | Typically 85 % |
| Quiescent Current | <10 mA |
| Output Noise | <100 mV pk‑pk at continuous load |
| Operating Temperature Range | -25 °C to +30 °C (derated to 0 A up to +80 °C) |
| Storage Temperature Range | -25 °C to +100 °C |
| Enclosure Rating | IP54 |
| Dimensions | 80 mm × 31 mm × 29 mm (L × W × H) |
| Weight | 52 g |
It accepts an input voltage from 17 V to 32 V, with a nominal value of 24 V.
The converter can continuously deliver 0.7 A at 13.6 V.
Typical efficiency is about 85 %.
