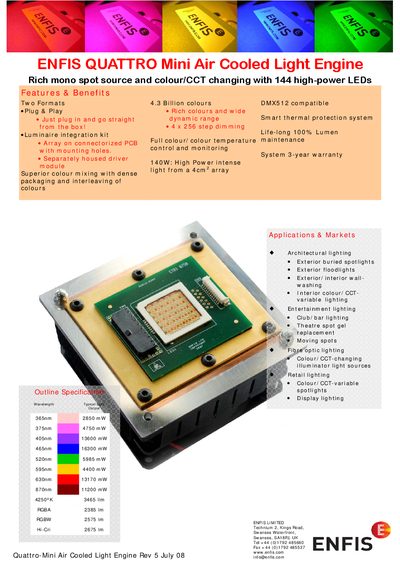

ENFIS QUATTRO Mini Air Cooled Light Engine is a rich mono spot source and colour/CCT changing with 144 high-power LEDs
The ENFIS QUATTRO Mini is an air‑cooled light engine that combines 144 high‑power LEDs to deliver rich mono spot lighting with colour and CCT changing capability. It offers plug‑and‑play operation, DMX512 compatibility, 4.3 billion colour options, and a smart thermal protection system.
The handbook details technical specifications such as wavelength‑specific output powers, operating temperature ranges, and driver requirements. It also covers handling precautions, cleaning methods, eye‑safety warnings, and connectivity options like a TTL interface with a USB converter.
| 365 nm wavelength output power | 2850 mW |
|---|---|
| 375 nm wavelength output power | 4750 mW |
| 405 nm wavelength output power | 13600 mW |
| Operating temperature range | -10 °C to +45 °C |
| Storage temperature range | -20 °C to +85 °C |
| Input voltage to driver | 48 V DC <5 A |
It can operate from –10 °C up to +45 °C.
Blow the surface with dry air or nitrogen gas and avoid touching the encapsulation.
It provides a TTL interface with a USB converter and a USB/Serial PC interface.
