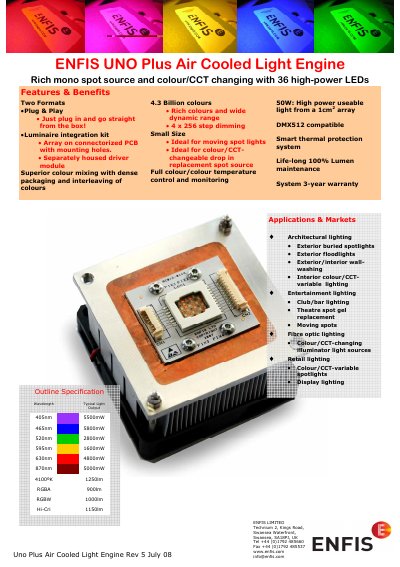

ENFIS UNO Plus is an air-cooled light engine with a rich mono spot source and color/CCT changing capability. It is equipped with 36 high-power LEDs and is available in two formats: plug & play and luminaire integration kit. It offers superior color mixing with dense packaging and interleaving of colors, providing high-power usable light. The light engine is DMX512 compatible and features a smart thermal protection system and life-long 100% lumen maintenance.
The ENFIS UNO Plus is an air‑cooled light engine integrating 36 high‑power LEDs. It offers rich colour mixing, 4.3 billion colour possibilities, DMX512 compatibility, and a smart thermal protection system. The unit is supplied in two formats – plug‑and‑play and a luminaire integration kit – and is suited for architectural, entertainment, fibre‑optic and retail lighting applications.
Technical data include wavelength‑specific light output, power consumption, driver efficiency, and operating temperature ranges. Safety information covers static electricity handling, cleaning procedures, eye‑safety precautions, and thermal management with a metal heatsink and low‑noise fan. Contact ENFIS Ltd for further details.
| Typical Light Output (mW) at 405 nm | 6200 |
|---|---|
| Typical Light Output (lm) at 405 nm | 1250 lm |
| Operating Temperature Range | -10 °C to +45 °C |
| Typical Driver Efficiency | >90 % |
| Input Voltage to Driver | 48 V DC <3 A |
| Warranty | 3 years |
The product comes with a 3‑year warranty.
It can produce up to 4.3 billion colours.
The driver operates from a 48 V DC supply with a current below 3 A.
Avoid looking directly at the light output; refer to IEC 60825‑1:2001 for detailed eye‑safety guidelines.
