This document provides information on the absolute maximum ratings, electro-optical data, and characteristics of various LED products. It includes LEDs of different colors such as red, bright red, green, yellow, orange, etc. Each LED has different characteristics such as wavelength, maximum power, maximum current, etc.

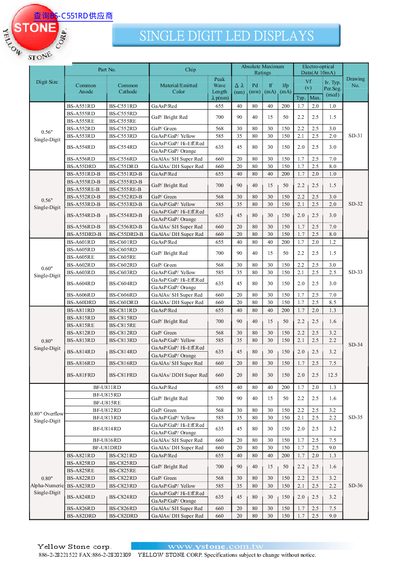

This datasheet lists the electrical and optical characteristics of Yellow Stone Corp's single‑digit LED display series. It includes a range of LED colors (Red, Bright Red, Green, Yellow, Orange, Super Red) with their peak wavelengths, forward voltage, forward current and power ratings.
Mechanical dimensions, pin assignments and tolerance information are also provided. All dimensions are given in millimetres (inches) and tolerances are specified as +0.25 mm (+0.010 in).
| Red LED (BS‑C55IRD) Peak Wavelength | 655 nm |
|---|---|
| Dimension Tolerance | +0.25 mm (+0.010 in) |
The red LED (BS‑C55IRD) has a peak wavelength of 655 nm.
Dimensions have a tolerance of +0.25 mm (+0.010 in).
