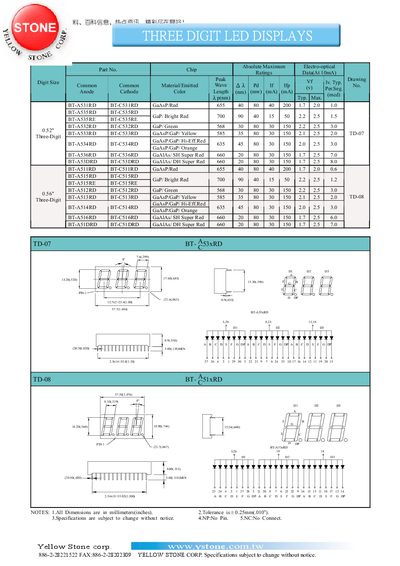

This document presents the technical data for Yellow Stone's three‑digit LED displays. It lists the electro‑optical ratings for each LED type, including wavelength, forward voltage and typical current at 10 mA.
Dimensions are given in millimetres with a tolerance of ±0.25 mm, and the specifications are subject to change without notice. The sheet also defines part numbers for red, green, yellow and orange modules.
| Red LED wavelength | 655 nm |
|---|---|
| Bright Red LED wavelength | 700 nm |
| Dimension tolerance | ±0.25 mm |
The red LED has a wavelength of 655 nm.
Dimensions are toleranced to ±0.25 mm.
All dimensions are provided in millimetres (and inches).
Yes, the specifications are subject to change without notice.
