This document describes the RIP series power configurations produced by Deltron Emcon, including different models with various current ratings, capacitor values, and output terminal styles. The products comply with international safety standards and are suitable for applications such as gaming machines, digital equipment, personal computers and peripherals, measuring instruments, and display units.

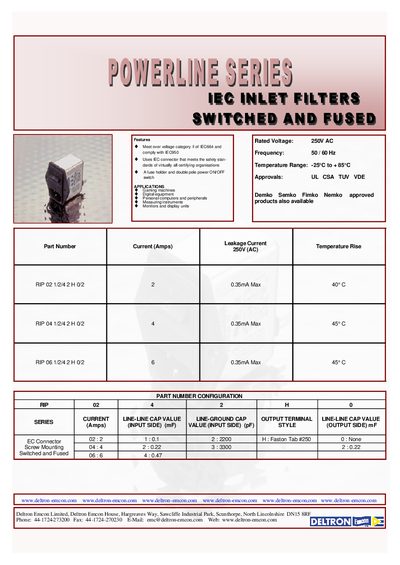

This document provides the part‑number configuration for the Deltron Emcon RIP 02 4 2 0 series. It lists the available variants, their current ratings, leakage, temperature rise, and the corresponding line‑line and line‑ground capacitance values for both input and output sides.
The manual also includes general product features such as a rated voltage of 250 V AC, 50/60 Hz operation, a temperature range of –25 °C to +85 °C, and safety approvals (UL, CSA, TUV, VDE). Contact information for Deltron Emcon Limited is provided at the end of the document.
| Rated Voltage | 250 V AC |
|---|---|
| Frequency | 50 / 60 Hz |
| Temperature Range | -25 °C to +85 °C |
| Approvals | UL, CSA, TUV, VDE |
| RIP 02 current rating | 0.35 mA (max 40 °C) |
| RIP 04 current rating | 0.35 mA (max 45 °C) |
| RIP 06 current rating | 0.35 mA (max 45 °C) |
The rated voltage is 250 V AC.
It is approved by UL, CSA, TUV and VDE.
It can operate from –25 °C to +85 °C.
