This document introduces the features and characteristics of the RID series current transformers from Deltron Emcon, including parameters such as rated current, leakage current, temperature range, etc. The product meets over voltage category II of IEC664 and is approved by UL, CSA, TUV, VDE, etc.

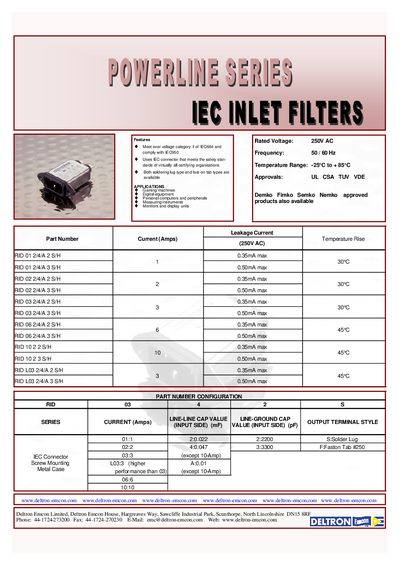

The IEC Inlet Filters from Deltron Emcon are designed to meet IEC over‑voltage category II requirements and comply with IEC 950 safety standards. They are available with both soldering lug and fast‑on tab terminations and support a rated voltage of 250 V AC, a frequency range of 50‑60 Hz, and an operating temperature range of –25 °C to +85 °C.
These filters are approved by major certification bodies (UL, CSA, TUV, VDE) and are suitable for a variety of applications including gaming machines, digital equipment, personal computers, peripherals, measuring instruments, monitors and display units. Detailed electrical characteristics such as leakage current and capacitance values are provided for each part number.
| Rated Voltage | 250 V AC |
|---|---|
| Frequency | 50 / 60 Hz |
| Temperature Range | -25 °C to +85 °C |
| Approvals | UL, CSA, TUV, VDE |
| Leakage Current (30 °C) | 0.35 mA max |
| Leakage Current (45 °C) | 0.50 mA max |
The IEC Inlet Filters are rated for 250 V AC.
The filters are approved by UL, CSA, TUV and VDE.
They operate from –25 °C up to +85 °C.
Both soldering lug type and fast‑on tab type are available.
