HDMI (High Definition Multimedia Interface) products offer superior digital video and audio signal transmission. They can be used with Cat5e/6 cables to cover extended distances between AV source and display devices. Ideal for digital signage applications.

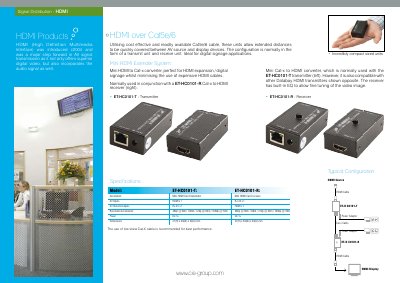

The CIE Group Mini HDMI to Cat‑X converter system provides HDMI video and audio transmission over inexpensive Cat5e/6 cable, ideal for digital signage and long‑distance AV installations. The system consists of a transmitter (ET‑HC0101‑T) and a receiver (ET‑HC0101‑R) that work together to extend HDMI signals up to 80 m for 480p and 30 m for 1080p.
Both units are compact (21 mm × 69 mm × 39 mm) and powered by a 5 V DC supply. Connections are straightforward: the transmitter accepts one HDMI input and a Cat‑X cable, while the receiver provides one HDMI output and a Cat‑X cable to the display. Low‑skew Cat‑X cable is recommended for optimal performance.
| AV Inputs (Transmitter) | HDMI x 1, RJ‑45 x 1 |
|---|---|
| AV Remote Outputs (Receiver) | RJ‑45 x 1, HDMI x 1 |
| Supported Resolutions & Maximum Distance | 480p @ 80 m, 1080i/720p @ 60 m, 1080p @ 30 m |
| Power Supply | DC 5 V |
| Dimensions (each unit) | 21 mm (H) × 69 mm (W) × 39 mm (D) |
Use low‑skew Cat‑X cable for the best performance.
1080p can be extended up to 30 m.
The transmitter has one HDMI input.
Both units operate from a 5 V DC supply.
