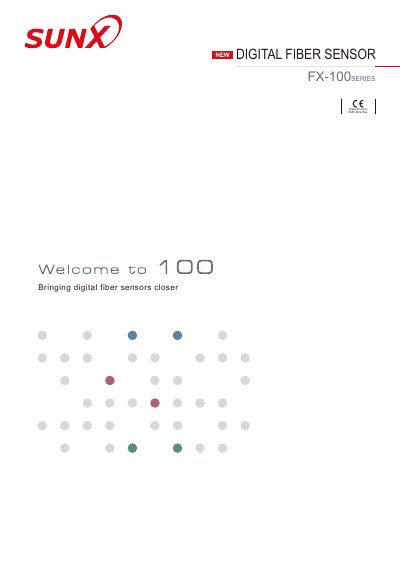

The new digital fiber sensor FX-100 series has been completely redesigned in appearance and function. With its digital dual-display, the product is more user-friendly and easier to read. It is also multi-functional and more affordable than ever before, making digital fiber sensors more accessible to the general public.
This manual introduces the SUNX FX-100 series digital fiber sensors, covering the standard FX-101 and long‑range FX-102 variants. It describes the dual‑display interface, threshold adjustment, and key lock functions that simplify operation.
Installation options include direct mounting and DIN‑rail mounting, with detailed wiring diagrams, connector options, and accessory lists. The document also provides full specifications, emission‑frequency settings, and troubleshooting guidance.
| Supply voltage | 12 to 24 V DC |
|---|---|
| Power consumption (normal mode) | 720 mW or less |
| Maximum sink current (NPN output) | 100 mA |
| Emission frequency 0 | 250 µs or less |
| Net weight | 15 g (approx.) |
Threshold values are adjusted by pressing the (UP) or (DOWN) key on the sensor.
The sensor operates from 12 V to 24 V DC.
It can be installed directly without a bracket or mounted on a DIN rail.
