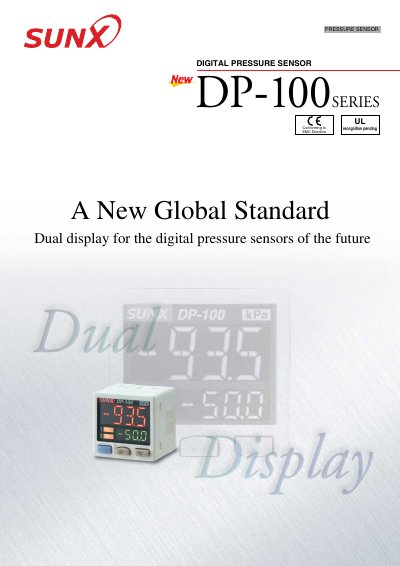

DP-100 series is a new digital pressure sensor from SUNX. This product uses a dual display design, which can display the current value and threshold value at the same time, improving the operation and visibility. In addition, this product also uses a 3-color display, which can change color according to the ON / OFF operation status, improving the product's identification.
The DP-100 Series introduces a dual 3‑color LCD display that shows current and threshold values simultaneously, improving ease of operation and visual checking. The sensor offers direct threshold setting, key lock, and copy functions to streamline configuration across multiple units.
The manual also covers power‑saving ECO modes, selectable response times, analog and comparative outputs, mounting options, and detailed specifications such as supply voltage, pressure ranges, and environmental ratings.
| Supply voltage | 12 to 24 V DC |
|---|---|
| Current consumption (normal mode) | 35 mA or less at 24 V |
| Current consumption (ECO‑FULL mode) | 20 mA or less at 24 V |
| Display type | 3‑color LCD (red, green, orange) |
| Response time range | 2.5 ms to 5,000 ms selectable |
| Pressure range (low pressure) | kPa, kgf/cm², bar, psi, mmHg, inHg |
| Pressure range (high pressure) | MPa, kPa, kgf/cm², bar, psi |
The sensor uses a three‑color LCD display with red, green, and orange indicators to show status and operation mode.
The copy function lets you transmit setting details from a master sensor to other sensors, reducing setup time and human error.
In ECO‑FULL mode the sensor consumes about 20 mA at 24 V (≈480 mW).
