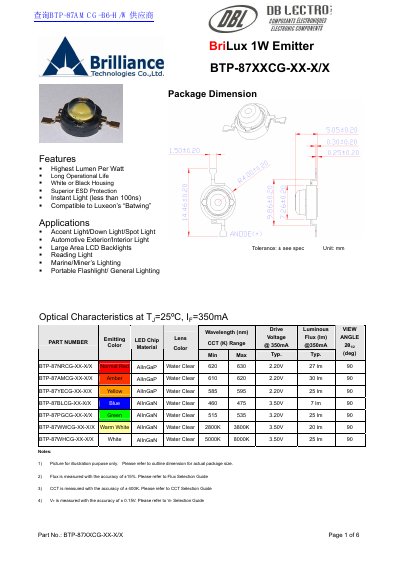

This document is the specification of BriLux 1W Emitter BTP-87XXCG-XX-X/X. It includes product features, applications, parameters etc.
The BriLux 1W Emitter series offers high lumen‑per‑watt performance, long operational life, and superior ESD protection in a compact white or black housing. It is compatible with Luxeon’s Batwing applications and suitable for accent, down, spot lighting, automotive, LCD backlights, reading lights, marine/miner lighting, and portable flashlights.
The datasheet lists detailed optical characteristics (wavelength, CCT, luminous flux), absolute maximum ratings (forward current, reverse voltage, power dissipation), and selection guides for CCT, flux, and forward voltage. Important notes cover heat‑sink requirements, safety cautions, and the responsibility of designers to stay within specified operating ranges.
| Operating Temperature | -30 to +110 °C |
|---|---|
| Reverse Voltage | 5 V |
| Power Dissipation (Red/Amber/Yellow) | 0.77 W |
The device can be stored from –40 °C to +120 °C.
