Brady B-580 is a high gloss, durable, flexible, pressure sensitive adhesive product designed for use with the Labelizer® Plus printer, LabelLite® printer, VersaPrinter™ Label and Sign Maker System, HandiMark® Portable Label Maker, MiniMark™, PowerMark® for pipemarker, arrow tape, warehouse marking, warning panels and safety signs.
The Brady B-580 is a high‑gloss, durable vinyl marking film designed for indoor and outdoor use with Brady label printers and portable label makers. It is supplied in cartridge form and is available in a wide range of material and legend colors.

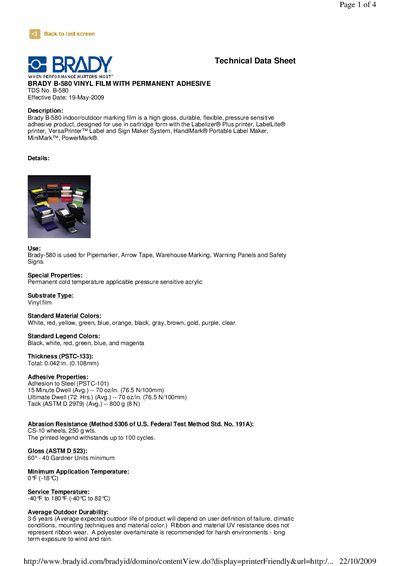

The sheet provides detailed performance data, including thickness, adhesive strength, gloss, temperature limits, chemical resistance, outdoor durability, and recommended polyester overlaminate for harsh environments. Warranty and compliance information are also included.
| Substrate Type | Vinyl film |
|---|---|
| Thickness | 0.042 in (0.108 mm) |
| Adhesion to Steel | 70 oz/in (76.5 N/100mm) |
| Tack (ASTM D 2979) | 800 g (8 N) |
| Gloss (ASTM D 523) | 40 Gardner Units minimum |
| Minimum Application Temperature | -18 °C |
| Service Temperature | -40 °F to 180 °F (-40 °C to 82 °C) |
| Average Outdoor Durability | 3‑5 years (depends on conditions) |
| Shelf Life | 1 year at 70 °F (21 °C) and 40‑50 % RH |
A clear 2 mil polyester overlaminate is recommended for harsh environments and extended outdoor life.
The film shows no effect (NE) after 7‑day immersion, dip, or rub tests with 30 % sulfuric acid.
The shelf life is 1 year when stored at 70 °F (21 °C) and 40‑50 % relative humidity.
