BRADY B-499 is a thermal transfer/dot matrix printable nylon cloth label for wiremarking and general labeling applications.
The Brady B-499 is a thermal‑transfer and dot‑matrix printable nylon cloth label made from polyamide‑coated nylon with a matte white finish and a permanent acrylic adhesive. It is intended for wire‑marking and general labeling applications and is not recommended for outdoor use.

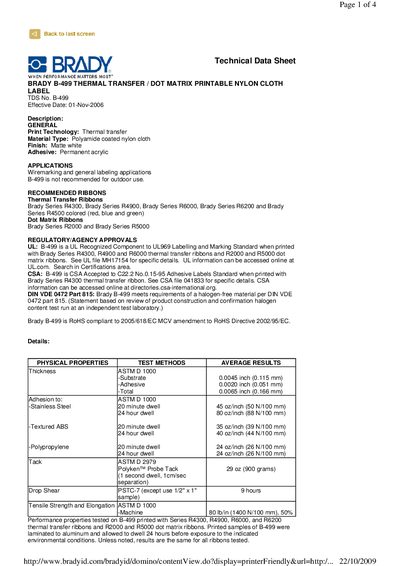

The sheet provides physical properties, adhesion performance, and extensive test results for temperature, humidity, UV, abrasion, and chemical resistance. Regulatory approvals include UL969, CSA C22.2 No.0.15‑95, DIN VDE 0472 Part 815, and RoHS compliance. Recommended ribbons and warranty information are also listed.
| Print Technology | Thermal transfer |
|---|---|
| Material Type | Polyamide coated nylon cloth |
| Finish | Matte white |
| Adhesive | Permanent acrylic |
| Total Thickness | 0.0065 inch (0.166 mm) |
| Adhesion to Stainless Steel (24 h dwell) | 80 oz/inch (88 N/100 mm) |
| Tack (Polyken™ Probe) | 29 oz (900 g) |
| UL Recognition | UL969 labeling and marking standard |
| CSA Acceptance | C22.2 No.0.15‑95 Adhesive Labels Standard |
The B-499 label uses a permanent acrylic adhesive.
No, B-499 is not recommended for outdoor use.
B-499 is a UL Recognized Component to UL969 labeling and marking standard when printed with specified ribbons.
The total thickness is 0.0065 inch (0.166 mm).
