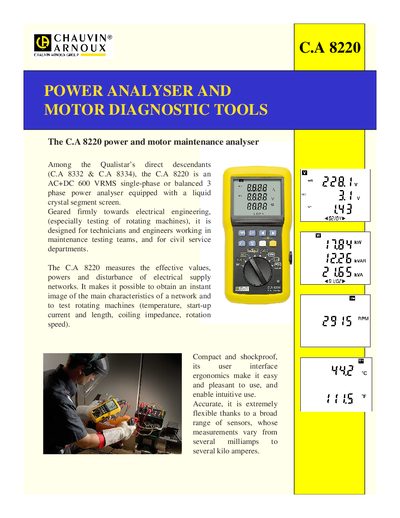

C.A 8220 is an AC+DC 600 VRMS single-phase or balanced 3 phase power analyser equipped with a liquid crystal segment screen. It is designed for electrical engineering, especially testing of rotating machines, for technicians and engineers working in maintenance testing teams, and for civil service departments. The C.A 8220 measures the effective values, powers and disturbance of electrical supply networks. It provides an instant image of the main characteristics of a network and enables testing of rotating machines (temperature, start-up current and length, coiling impedance, rotation speed).
The C.A 8220 power and motor maintenance analyser is designed for technicians and engineers testing rotating machines. It offers a liquid‑crystal segment screen, shock‑proof housing, and ergonomic user interface for easy operation.
Key specifications include a voltage range of 6 VRMS to 600 VRMS, AC current up to 6500 A, DC current up to 1700 A, frequency range 40‑70 Hz, motor speed measurement from 6 RPM to 120 kRPM, and temperature sensing from –200 °C to 850 °C. The unit weighs 840 g, measures 211 × 108 × 60 mm, and provides IP54 protection with up to 40 hours of battery operation.
| Voltage range | 6 VRMS to 600 VRMS AC+DC |
|---|---|
| Current range AC | 5 mA to 6500 A |
| Current range DC | 1 A to 1700 A |
| Frequency range | 40 Hz to 70 Hz |
| Temperature range | -200 °C to 850 °C |
| Battery runtime | up to 40 hours |
| Protection rating | IP54 |
It measures voltages from 6 VRMS up to 600 VRMS for both AC and DC.
The unit can run for up to 40 hours on its built‑in batteries.
Yes, the Power Analyzer Transfer software can be downloaded for free from the website.
