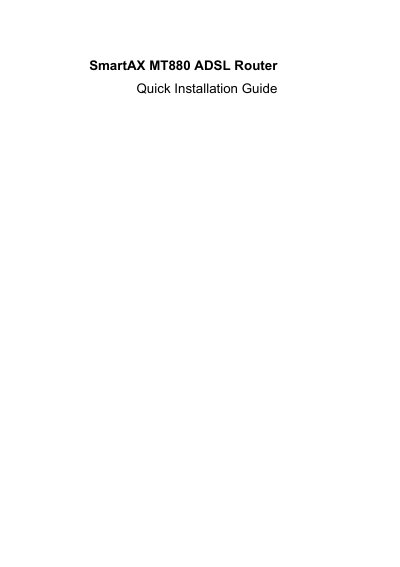

This is a quick installation guide for Huawei SmartAX MT880 ADSL router. The document provides detailed information about the packing list, overview, preparation, connection method, quick troubleshooting, safety concerns, FAQs, technical specifications, etc.
The Quick Installation Guide walks you through unpacking the SmartAX MT880, checking the packing list, and positioning the router. It explains the rear and front panel connections, including ADSL, Ethernet, power, and reset functions, and shows how to connect the router to a splitter, telephone line, and computer.
Additional sections cover troubleshooting LED indicators, safety precautions, frequently asked questions, and a technical specifications table that lists standards, data rates, power requirements, dimensions and environmental limits.
| Standards | ITU‑T G.992.5, G.992.5 Annex L, ITU G.994.1 (G.hs) |
|---|---|
| Downstream rate | 24 Mbps |
| Upstream rate | 1.2 Mbps |
| External interface | 1 RJ‑11 ADSL port, 1 RJ‑45 Ethernet port |
| Power adapter | 9 V AC 1 A |
| Power consumption | < 9 W |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions | 135 mm × 110 mm × 28 mm |
| Weight | 180 g |
Press the Reset button on the rear panel and hold it for three seconds to restore the router to factory defaults.
