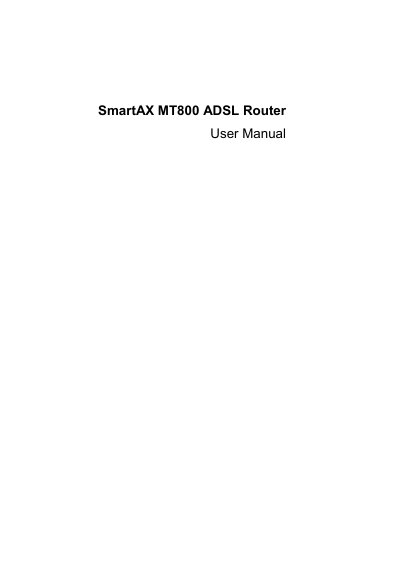

This is a user manual for Huawei SmartAX MT800 ADSL Router
This manual covers the SmartAX MT800 ADSL router, detailing hardware installation, initial setup, and web‑based management procedures. It includes sections on service configuration, troubleshooting, and technical specifications.
The document also lists factory default settings, abbreviations, and regulatory compliance information, helping installers and maintenance personnel configure and maintain the device efficiently. This manual is written in Chinese.
| Downstream Data Rate | up to 8 Mbps |
|---|---|
| Upstream Data Rate | up to 896 kbps |
| External Interface | One RJ‑11 port for ADSL, One RJ‑45 port for 10/100 Base‑T Ethernet |
| Power Adapter | 9 V AC 1 A |
| Maximum Power Consumption | 9 W |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions | 135 mm × 110 mm × 28 mm |
| Weight | 180 g |
The default username is **admin** and the default password is **admin**.
The router’s default IP address is **192.168.1.1**.
The MT800 has one RJ‑11 port for the ADSL line connection.
