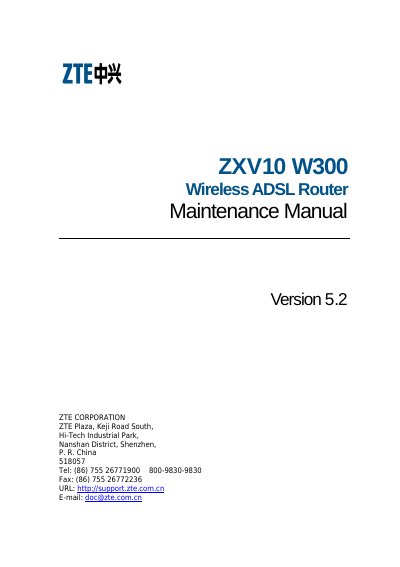

This manual introduces the maintenance methods of ZXV10 W300 wireless ADSL router
This manual is intended for maintenance personnel and covers the basic information needed to install, configure, and maintain the ZXV10 W300 wireless ADSL router. It includes safety instructions, hardware connections, default settings, and detailed configuration procedures.
The document is organized into chapters covering product installation, interface setup, advanced features such as firewall, NAT, QoS, VLAN, and ADSL settings, as well as sections on maintenance, diagnostics, status monitoring, and troubleshooting. Appendices provide technical specifications and additional configuration examples. This manual is written in Chinese.
| ADSL compatible standards | ANSI T1.413 Issue 2, ITU G.992.1, G.992.2, G.992.3, G.992.5 |
|---|---|
| Line impedance | 100 Ω |
| LAN interface | 10/100 Base‑T, IEEE 802.3/802.3u |
| Wireless frequency band | 2.4 GHz ~ 2.4835 GHz |
| Wireless standards | IEEE 802.11b/g/n |
| Physical dimensions | 145.0 mm × 107.6 mm × 29.3 mm |
| Weight | 575 g (including package and kits) |
Use the power adapter that is included in the package; using a different adapter may cause the device to malfunction or be damaged.
Open a web browser and navigate to the router’s configuration page as described in the Configuration Page Login section of the manual.
The router measures 145.0 mm × 107.6 mm × 29.3 mm and weighs approximately 575 g including packaging.
