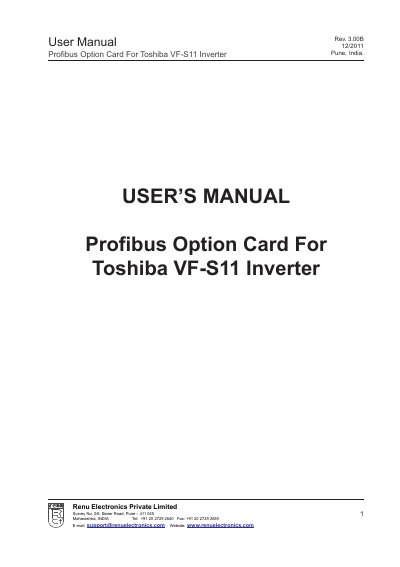

This manual provides a quick overview of the Profibus Option Card For Toshiba VF-S11 Inverter
This manual provides a quick overview of the Profibus Option Card that enables a Toshiba VF‑S11 inverter to function as a PROFIBUS‑DP slave. It describes the hardware connections, power requirements, LED status indicators, and the communication ports used for PROFIBUS and optional serial interfaces.
Detailed sections cover the required inverter settings, configuration procedures with gateway software or Siemens/Omron PROFIBUS masters, mounting instructions, safety precautions, and application examples. The document also includes a device database (GSD) description and profile information for integration into PROFIBUS networks.
| Power supply | 24 V, 100 mA from VF‑S11 control card |
|---|---|
| LEDs | 3 status LEDs (S11, OK, PROFIBUS) |
| Profibus baud rates | 9.6k to 12M bit/s (autodetect) |
| I/O data capacity | 100 Word Input, 100 Word Output |
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -20 °C to 80 °C |
| Humidity range | 10 % to 90 % non‑condensing |
| Certification | CE |
| Isolation voltage | 1 kV between communication ports and power supply |
One LED shows the S11 inverter status, another indicates OK status, and the third shows PROFIBUS activity.
The option card draws 24 V at 100 mA from the Toshiba VF‑S11 control card.
Use the configuration steps described in section 3.3.2, which detail the revised setup for a Siemens PROFIBUS master.
