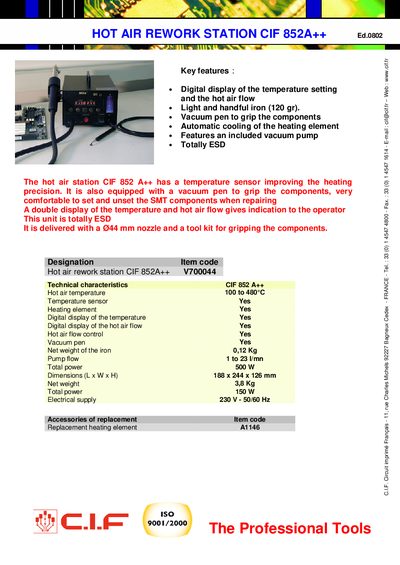

The document describes the features and characteristics of a hot air rework station called CIF 852 A++, including digital temperature display, lightweight iron, vacuum pen, etc.
The CIF 852A++ hot air rework station is an ESD‑safe tool equipped with a digital display for temperature and hot‑air flow, a lightweight 120 g iron, and a vacuum pen for easy component handling. It includes a 44 mm nozzle and a tool kit for gripping components, making it convenient for SMT repair work.
Technical specifications include a temperature range of 100 °C to 480 °C, a total power of 500 W, and an electrical supply of 230 V ± 50/60 Hz. The unit measures 188 × 244 × 126 mm, weighs 3.8 kg, and provides a hot‑air flow of 1 to 23 I/min. Accessories such as a replacement heating element and vacuum pump are supplied.
| Temperature range | 100 to 480 °C |
|---|---|
| Electrical supply | 230 V - 50/60 Hz |
| Dimensions (L×W×H) | 188 × 244 × 126 mm |
| Hot‑air flow | 1 to 23 I/min |
| Nozzle size | 44 mm |
| Vacuum pen | Included |
| Digital temperature display | Yes |
| Digital hot‑air flow display | Yes |
It operates from 100 °C to 480 °C.
It measures 188 × 244 × 126 mm.
