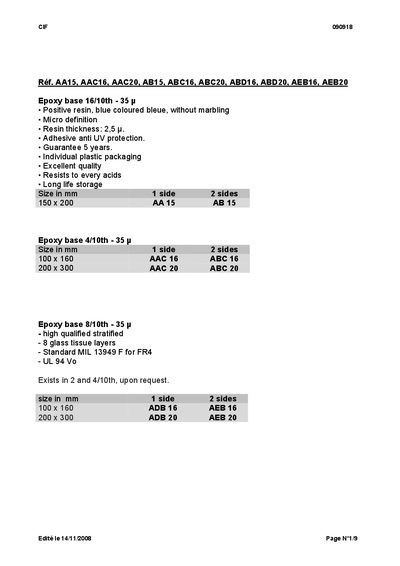

This document introduces a series of products made with epoxy base materials, including positive resin with anti-UV protection, resistance to acids, excellent quality, and long service life.
The CIF catalog presents a range of epoxy‑base printed circuit boards (e.g., AA15, AAC16, AB15) with specifications such as resin thickness, UV protection and a five‑year guarantee. It also lists copper‑clad pad panels, carbide drill and milling bits, and various consumables for PCB fabrication.
Additional sections cover the HANDY 859 desoldering station, solder flux syringes, filter hoods and cabinets, exposure‑unit kits, and hot‑air rework stations (V700043/V700044), each with technical data, dimensions and accessories. This manual is written in French.
| Resin thickness | 2.5 µm |
|---|---|
| Guarantee period | 5 years |
| Desoldering temperature range | 280 °C to 450 °C |
| Total power (HANDY 859) | 130 W |
| Net weight (HANDY 859) | 6.7 kg |
| Dimensions (HANDY 859) | 162 × 250 × 160 mm |
| Electrical supply (HANDY 859) | 230 V — 50/60 Hz |
| Hot‑air temperature range (V700043) | 100 °C to 480 °C |
| Pump flow (V700043) | 1 to 23 L/min |
The epoxy base boards are guaranteed for five years.
It requires a 230 V — 50/60 Hz electrical supply.
Both models provide hot‑air temperatures from 100 °C up to 480 °C.
The station weighs 6.7 kg.
