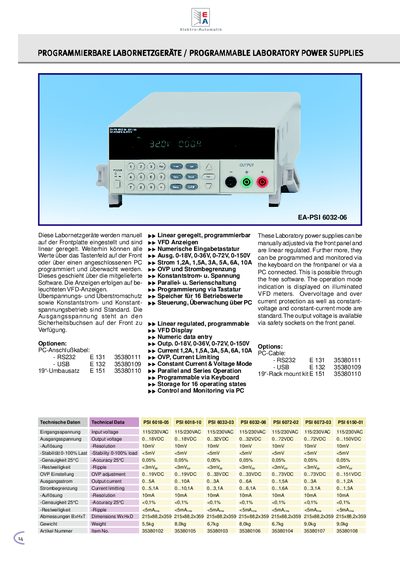

EA-PSI 6032-06 is a programmable laboratory power supply that provides 0-18V, 0-36V, 0-72V and 0-150V output voltage and 1.2A, 1.5A, 3A, 5A, 6A and 10A output current. The power supply has overvoltage protection and current limiting function, supports constant current and constant voltage mode, and can be connected in parallel and series. The power supply can be programmed via keyboard and can store 16 operating states. The power supply can also be controlled and monitored via PC.
The EA‑PSI 6032‑06 is a linear‑regulated laboratory power supply that can be manually set on the front panel or programmed via the numeric keypad or a PC using the supplied software. It features illuminated VFD displays, over‑voltage and over‑current protection, and constant‑voltage/constant‑current operation.
Technical specifications include selectable output ranges up to 0‑72 VDC, current limits up to 6 A, and storage for 16 operating states. Optional accessories such as RS‑232 or USB interfaces and rack‑mount kits are available. This manual is written in German.
| Input voltage | 115/230VAC |
|---|---|
| Resolution | 10 mV |
| Stability | 0‑100% load <5 mV |
| Ripple | <3 mVpp |
It can be programmed via the front‑panel numeric keypad or through a PC using the supplied free software.
Over‑voltage and over‑current protection, as well as constant‑voltage and constant‑current modes, are standard.
The unit can store up to 16 operating states.
Options include 0‑18 V, 0‑36 V, 0‑72 V, and 0‑150 V.
