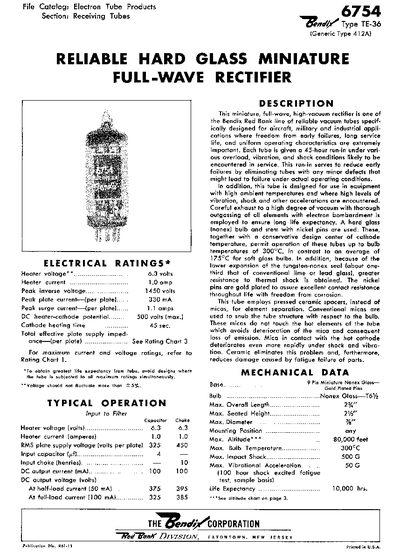

The Bendix 6754 full‑wave rectifier is part of the Red Bank line designed for aircraft, military and industrial equipment where long service life and uniform performance are critical. The tube features a hard‑glass nonex bulb, gold‑plated nickel pins, and ceramic spacers to resist thermal shock, vibration and corrosion.
Key specifications include a 6.3 V heater voltage, 1.0 A heater current, 1450 V peak inverse voltage, and a maximum plate current of 330 mA. Mechanical data list a 2‑inch overall length, 1‑inch maximum diameter, and a vibration rating of 50 G. The tube is rated for operation up to 80 000 ft altitude and a life expectancy of 10 000 hours.
| Heater voltage | 6.3 V |
|---|---|
| Heater current | 1.0 A |
| DC heater‑cathode potential (max) | 500 V |
| Cathode heating time | 45 s |
| Maximum altitude | 80,000 ft |
| Maximum overall length | 2 in |
| Maximum vibrational acceleration | 50 G |
The heater voltage is 6.3 volts.
It is rated for a maximum altitude of 80,000 feet.
The tube uses a hard‑glass nonex bulb.
