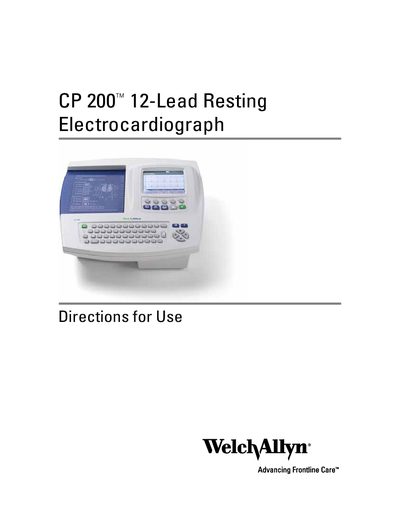

CP 200™ 12-Lead Resting Electrocardiograph Directions for Use
This manual introduces the Welch Allyn CP200 electrocardiograph, describing its intended clinical use, key features such as a full alphanumeric keypad, color LCD display, and storage for ECG and spirometry records. It explains how to set up the device, connect patient cables, load paper, and configure system and ECG settings.
The guide also covers performing ECG and spirometry tests, managing patient data, administrative tasks, routine maintenance, troubleshooting, and specifications. Safety warnings, regulatory information, and warranty details are included to ensure proper and safe operation.
| ECG record capacity | 50 ECG records |
|---|---|
| Spirometry record capacity | 50 spirometry records |
| Battery printing capability | Up to 100 ECGs on battery |
| Keypad type | Full alphanumeric keypad |
| Display type | Color LCD display |
| Supported memory media | SD™ memory cards and removable USB storage devices |
| Lead capability | 12 leads |
The CP200 can store up to 50 ECG records.
Yes, it can run on battery power and print up to 100 ECGs before recharging.
The device supports SD™ memory cards and removable USB storage devices.
It supports up to twelve (12) leads for ECG acquisition.
